Comfort retrofit
Heated Steering Wheel Retrofit Planning
Learn why a heated steering wheel is usually a parts-and-wiring project first, and a FORScan configuration project second.
1Best use of this free guide
Use it to confirm which physical parts must exist before a worksheet can help.
2Confirm first
Confirm the modules, wiring, switches, sensors, or feature hardware are actually installed.
3Stop if
FORScan will not connect, voltage is unstable, the module/address does not match your worksheet, or the truck shows warnings.
Start here
Should you do this?
The short answer first, so you can stop reading if it is not for your truck.
Best use of this free guide
Use it to confirm which physical parts must exist before a worksheet can help.
Confirm first
Confirm the modules, wiring, switches, sensors, or feature hardware are actually installed.
Stop if
FORScan will not connect, voltage is unstable, the module/address does not match your worksheet, or the truck shows warnings.
This free lesson is here to help you decide, not pressure you. If the setup, hardware, legality, safety, or compatibility picture is unclear, pause and research before purchasing parts, building a worksheet, or writing values. Never copy values from a free guide, screenshot, forum post, or another truck.
Background
What this actually changes
What the job does, where compatibility gets tricky, and what it looks like.

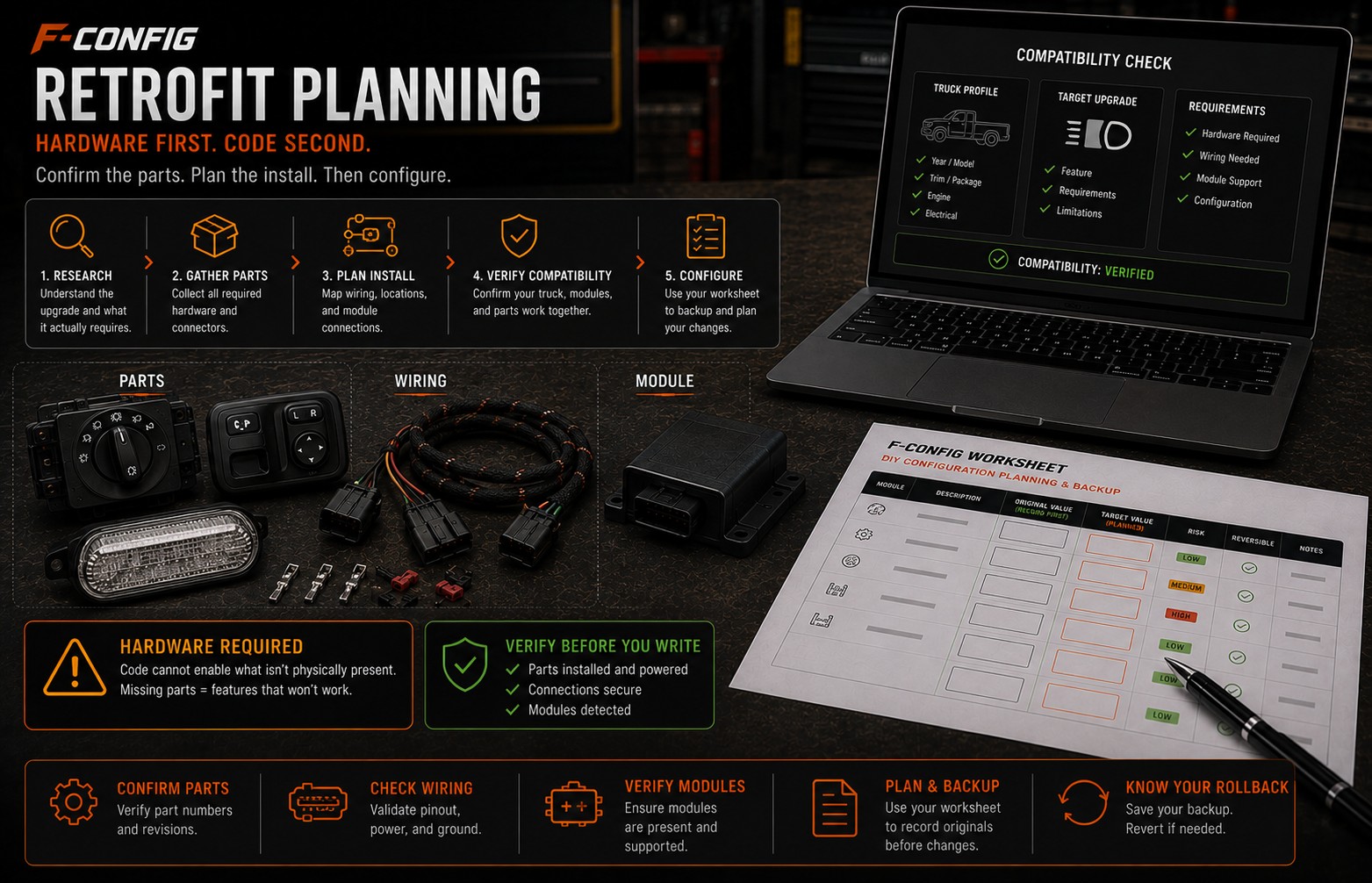

Retrofit planning starts with physical parts, wiring, connectors, modules, and controls. Code rows come after the hardware path is real.
A heated steering wheel retrofit tries to add a real heated wheel and make the factory-style controls show up where the driver can use them.
Software or hardware?
This is not software-only. Coding cannot create heating hardware, wiring, or module support that is not present.
Where compatibility gets tricky
Compatibility depends on year, trim, wheel hardware, clockspring/contact plate, HSWM availability, APIM/FCIM behavior, and harness support.
Before you build a worksheet
Use this free guide to decide if the job makes sense for your truck. If the required hardware, safety impact, adapter connection, or backup plan is unclear, solve that first instead of building a worksheet and guessing inside FORScan.
Pictures, videos and comparisons
Use this table to decide whether to continue reading, prepare more, or stop before changing anything.
Best use
Confirm parts and feature hardware before building the worksheet.
Good sign
The needed mirrors, seats, sensors, switches, wiring, modules, or harnesses are installed.
Stop sign
You are hoping a code row will create hardware that is not on the truck.
Worksheet fit
Useful after the physical retrofit path is known and compatible.
F-Config
Prepare Your OBD-II Adapter
Install drivers, confirm adapter mode, and check the connection path before opening a module.
Open resource
F-Config
Careful Read, Write, Cycle, Verify Workflow
Follow a repeatable process: read the module, confirm original values, write the worksheet values, cycle ignition, and verify.
Open resource
F-Config
Backup Your Original Module Values
The most important safety step. Save original module values before changing any as-built data.
Open resourceThe work
How to do it
What to have ready, what to do before you change anything, and the order to work in.
What you need before you start
Before changing any values
Save the original value before changing a row. Only use rows from your own worksheet for your selected truck. If something feels wrong, restore the last original value first.
- Confirm the wheel itself is a heated wheel, not only a matching-looking replacement.
- Confirm the truck has the correct wiring/contact path for the wheel.
- Do not assume a screen toggle means the heating circuit exists.
- Back up APIM, FCIM, and related module values before changing configuration.
A simple way to approach it
- 1
Confirm the parts list for your selected year and trim.
- 2
Verify installed modules and connectors.
- 3
Back up original module data.
- 4
Change only one configuration area at a time.
- 5
Test the control path before assuming the retrofit is complete.
Afterwards
Check it worked
How to confirm it worked
- Control appears only where expected.
- Wheel heats without faults or module errors.
- No steering wheel, clock spring, or control-module warning remains.
Common mistakes and problems
- Toggle appears but heat does not work.
- Required module is missing.
- Connector or harness path is different than expected.
- The customer buys a wheel before confirming the supporting hardware path.
FORScan notes
- APIM and FCIM changes may expose controls without completing the hardware path.
- HSWM-related behavior depends on whether the module and wiring exist.
- Treat missing controls or non-response as a hardware validation issue first.
Safety net
If it goes wrong, and where this came from
Rollback plan
- Restore APIM/FCIM values if controls appear incorrectly.
- Stop work if steering wheel electronics show unexpected warnings.
Verified facts
Heating requires physical hardware and a safe electrical path.
Forum-reported claims
Owners report different module and contact-plate requirements by year and trim.
F-Config assumption
Parts verification should happen before building a worksheet for this retrofit.
Sources reviewed
FORScan official site
OfficialUsed for general FORScan software, adapter, and license context.
Open sourceFORScan community forum
Community-reportedUsed to compare community-reported module behavior and common troubleshooting patterns.
Open sourceFord owner support
OfficialUsed for owner-facing feature and vehicle operation context.
Open sourceF-Config is independent. These notes do not imply Ford, FORScan, forum, or community endorsement. Do not use F-Config to bypass emissions, theft, restraint, safety, inspection, odometer, VIN, or licensing protections.
